Color multicolor film G10 for knife handle

Advantages:Our G10 is first quality with good structure, absolutely no foreign matter or defects of any kind, very closed thickness tolerance, flat and straight panel, smooth and clean surfaces.* very bright color, especially suitable for fins application.* absolutely no foreign matter or defects of any kind.* very closed thickn

Featured Products

Advantages:
Our G10 is first quality with good structure, absolutely no foreign matter or defects of any kind, very closed thickness tolerance, flat and straight panel, smooth and clean surfaces.

* very bright color, especially suitable for fins application.
* absolutely no foreign matter or defects of any kind.
* very closed thickness tolerance, flat and straight panel suitable for CNC machining.
* high flexural & impact strength.
* good structure with clear layer.
* customize color available.

Applications:
Our Colored G10 has high flexural & impact strength, good machining quality, and bright color,
Especially be suitable for Surfboard fins, Knife handle, and other sport appliances.

Colored G10 Epoxy Laminate can be made into Single colors or Multi-layered colors (G10 Mixed Color).
Usual colors available in: Black, White, Red, Yellow, Blue, Orange, Olive Green, Gray, Brown, and many others.

We also customize colors according to sample or color code.


Specifications:
1) Grade: G10
2) Usual Colors: Black, White, Red, Yellow, Blue, Orange, Olive Green, Gray, Brown, etc.
3) Thickness Range: 0.5mm to 50mm
4) Sheet Size: 915*1220mm; 1020*1220mm
5) Min. Order Quantity: 250 kgs in a lot

Colored Multi-Colored Sheet G10 for Knife Handle

Colored Multi-Colored Sheet G10 for Knife Handle
Colored Multi-Colored Sheet G10 for Knife Handle

Technical Performance


NO.

PROPERTIES

UNIT

STANDARD VALUE

TESTING

VALUE

1Flexural strength perpendicular to lamination- normal room temperature                        MPa≥ 350467
2Notch impact strength parallel to lamination (charpy)            kJ/m2≥ 3765
3Dielectric strength perpendicular to lamination (in oil 90±2ºC) 1.0mm in thickness   kV/mm≥ 14.222
4Breakdown voltage parallel to lamination
(in oil 90±2ºC)
  kV≥ 4565
51MHz dielectric coefficient   -≤ 5.54.13
61MHz loss factor-≤ 0.040.021
7Water absorption rate D-24/23, 1.6mm in thickness                %≤ 0.250.08
8Flammability-FV0FV0

Certificate Show

Colored Multi-Colored Sheet G10 for Knife Handle
About Us:

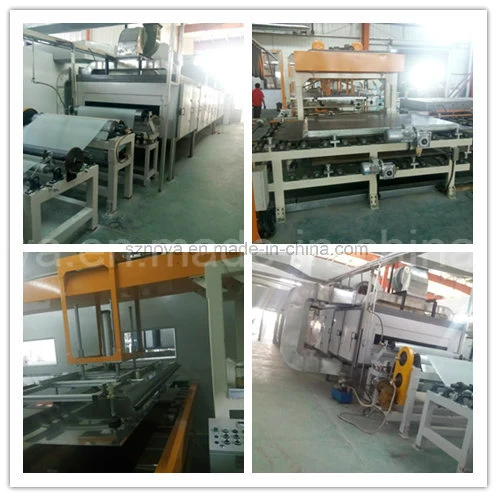

Nova Insulation Maetrial Co.,Ltd. is specialized in manufacture all kinds of Epoxy glass fabric laminated products with over 10 years experience, including G10/FR4, G11/FR5 and so on.

We can serve you not only customize the G10/FR4 Epoxy glass fabric laminated sheet products for you, but also very experienced design concept, strong program management system, well trained employees for Epoxy glass fabric making process, sophisticated equipment, and strict quality control schedule which can make us to be the successful manufacturer with high quality products and on time delivery for each of your projects.
Colored Multi-Colored Sheet G10 for Knife Handle

FAQ
1.Q:Are you factory?
 A:We are manufacturer with export license.
2.Q:How about the delivery time?
  A:Usually 7-15days,also depends on quantity.
3.Q:Can I get free sample for check?
  A:Normally small size can be provided for free and customers just need to take charge for express fee.
4.Q:Can you give me a discount price?
  A:It depends on quantity,the larger quantity is,the more discount you can get.
