Fuzhou O-Zone Optics is Customized Optics manufacturer:
Plano-Convex Cylindrical Lens is widely use in optical display systems, projection optics systems, imagining optical systems, and laser measurement systems. It is best use where conjugate point-- object distance, S or image distance S' is more than five times of the other. This lens is almost the most super form for both collimating a point source and focusing collimated light;
Plano-Concave acaylindrical Lens has a negative focal length and is typically used to cause a collimated beam to diverge as in a Galilean type beam expander or Telescope. Because the spherical aberration of the Plano-Concave is negative, it can be used to balance the aberration of other lenses.This lens is widely use in optical display systems, projection optics systems, imaging and laser measureemnt systerms;
End Caps is a high-power device designed for high-power fiber laser and amplifier output End face processing. It reduces the optical power density of the output End by expanding the output beam.
Our main lens
![Plano-Convex Cylindrical Lens Collimating Lens Achromatic Lens Double Concave Lens Fiber Endcap Window](https://img3.grofrom.com/ctlensenscupply/ec36edaa43611bd5e52b00cf46f4a773.webp)
![Plano-Convex Cylindrical Lens Collimating Lens Achromatic Lens Double Concave Lens Fiber Endcap Window](https://img3.grofrom.com/ctlensenscupply/2000800bd48245c8b6f7911731c91630.webp)
Important parameters
Plano-Concave acaylindrical Lens has a negative focal length and is typically used to cause a collimated beam to diverge as in a Galilean type beam expander or Telescope. Because the spherical aberration of the Plano-Concave is negative, it can be used to balance the aberration of other lenses.This lens is widely use in optical display systems, projection optics systems, imaging and laser measureemnt systerms;
End Caps is a high-power device designed for high-power fiber laser and amplifier output End face processing. It reduces the optical power density of the output End by expanding the output beam.
Our main lens
![Plano-Convex Cylindrical Lens Collimating Lens Achromatic Lens Double Concave Lens Fiber Endcap Window](https://img3.grofrom.com/ctlensenscupply/ec36edaa43611bd5e52b00cf46f4a773.webp)
![Plano-Convex Cylindrical Lens Collimating Lens Achromatic Lens Double Concave Lens Fiber Endcap Window](https://img3.grofrom.com/ctlensenscupply/2000800bd48245c8b6f7911731c91630.webp)
Important parameters
Attribute | Commercial | High Precision |
Typical Material | BK7 | BK7 , Fused Silica |
Typical Dimension X*Y (mm) | 10*10 | 10 * 30 |
Diameter Tolerance (mm) | +0.00/-0.2 | +0.00/-0.2 |
Focus Length Tolerance(mm) | Typical +/-2%@633nm | Typical +/-2%@633nm |
Centration ( arc min) | Typical < 3 | Typical < 3 |
Surface Figure X (per 25mm@632.8nm) | 1 /2 | 1/4 |
Surface Figure Y(per 25mm@632.8nm) | 2λ | λ |
Surface Quality (scatch/dig) | 60-40 | 10-5 |
Bevel (face width * 45° mm) | 0.2--0.5 | 0.05-0.2 |
coating | wavelength:AR: R≤0.25% per surface broadband AR R≤0.5% per surface | As requested |
Our factory:
Advanced equipments and complete production system ensure the whole production process.
![Plano-Convex Cylindrical Lens Collimating Lens Achromatic Lens Double Concave Lens Fiber Endcap Window](https://img3.grofrom.com/ctlensenscupply/522f162e0401fedbe075a6a0fa4eeb49.webp)
![Plano-Convex Cylindrical Lens Collimating Lens Achromatic Lens Double Concave Lens Fiber Endcap Window](https://img3.grofrom.com/ctlensenscupply/525cd33ea9aca4bb953668f593903167.webp)

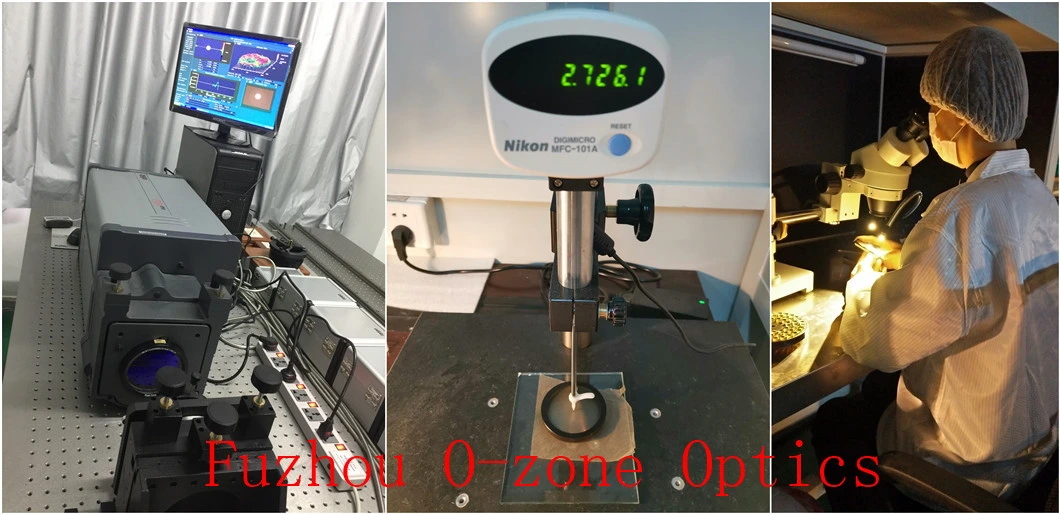

Inspection capacity:
strictly control during the production process and final inspection.
![Plano-Convex Cylindrical Lens Collimating Lens Achromatic Lens Double Concave Lens Fiber Endcap Window](https://img3.grofrom.com/ctlensenscupply/05a6fcbd1ca6c60a518e5842430dcd6b.webp)
![Plano-Convex Cylindrical Lens Collimating Lens Achromatic Lens Double Concave Lens Fiber Endcap Window](https://img3.grofrom.com/ctlensenscupply/b07bfab6dadc28f1b69263a13e1ed3df.webp)
Coating machine:
![Plano-Convex Cylindrical Lens Collimating Lens Achromatic Lens Double Concave Lens Fiber Endcap Window](https://img3.grofrom.com/ctlensenscupply/cbfee71a4e22f389ad4ea74bd00d773a.webp)
Our certificates:
![Plano-Convex Cylindrical Lens Collimating Lens Achromatic Lens Double Concave Lens Fiber Endcap Window](https://img3.grofrom.com/ctlensenscupply/453d4b48fb1c527029e3f4e6e5c03036.webp)
Exhibition
The laser photonic exhibition in Shanghai in 2019 has won high praise form our customers both from home and abroad.
![Plano-Convex Cylindrical Lens Collimating Lens Achromatic Lens Double Concave Lens Fiber Endcap Window](https://img3.grofrom.com/ctlensenscupply/11aa3a73ea12a65772855110c71d6cce.webp)
![Plano-Convex Cylindrical Lens Collimating Lens Achromatic Lens Double Concave Lens Fiber Endcap Window](https://img3.grofrom.com/ctlensenscupply/f8921c633de6b194a7392811e59d8779.webp)
Logistics
In order to make the goods safe fast accurate to your hands, we generally recommend that you choose the international logistics company!
![Plano-Convex Cylindrical Lens Collimating Lens Achromatic Lens Double Concave Lens Fiber Endcap Window](https://img3.grofrom.com/ctlensenscupply/7f3f3e123f7b1a9aff148ff5549fb65a.webp)
Contacts:
Sunny. Pan
